Nokia 3220 with NFC

Posted on 6 December 2005 in Interaction design, Mobility, Research, Ubicomp, Usability

First impressions

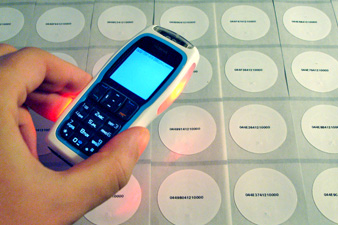

Overall the interaction between phone and RFID tags has been good. The reader/writer is on the base of the phone, at the bottom. This seems a little awkward to use at first, but slowly becomes natural. When I have given it to others, their immediate reaction is to point the top of the phone to the tag, and nothing happens. There follows a few moments of explaining as the intricacies of RFID and looking at the phone, with it’s Nokia ‘fingerprint’ icon. As phones increasingly become replacements for ‘contactless cards’, it seems likely that this interaction will become more habitual and natural.

Once the ‘service discovery’ application is running, the read time from tags is really quick. The sharp vibrations and flashing lights add to a solid feeling of interacting with something, both in the haptic and visual senses. This should turn out to be a great platform for embodied interaction with information and function.

The ability to read and write to tags makes it potentially adaptive as a platform wider than just advertising or ticketing. As an interaction designer I feel quite enabled by this technology: the three basic functions (making phonecalls, going to URLs, or sending SMSs) are enough to start thinking about tangible interactions without having to go and program any Java midlets or server-side applications.

I’m really happy that Nokia is putting this technology into a ‘low-end’ phone rather than pushing it out in a ‘smartphone’ range. This is where there is potential for wider usage and mass-market applications, especially around gaming and content discovery.

Improvements

I had some problems launching the ‘service discovery’ application. Sometimes it works, sometimes it doesn’t and it’s difficult to tell why this is. It would be great to be able to place the phone on the table, knowing that it will respond to a tag, but it was just a little too unreliable to do that without checking to see that it had responded. The version I have still says it’s a prototype, so this may well be sorted out by the released version.

Overall there is a lack of integration between the service discovery application and the rest of the system: Contacts, SMS archive and service bookmarks etc. At the moment we need to enter the application to write and manage tags, or to give a ‘shortcut’ to another phone, but it seems that, as with bluetooth and IR, this should be part of the contextual menus that appear under ‘Options’ within each area of the phone. There are also some infuriating prompts that appear when interacting with URL, more details below.

Details

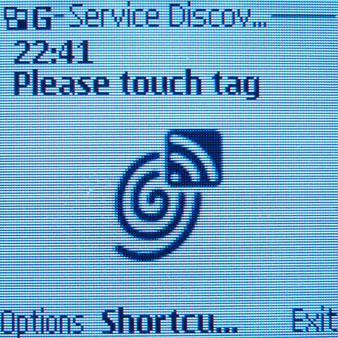

The phone opens the ‘service discovery’ application whenever it detects a compatible RFID tag near the base of the phone (when the keypad lock is off). This part is a bit obscure: sometimes it doesn’t ‘wake up’ for a tag, and the application needs to be loaded before it will read properly. Once the application is open (about 2-3 seconds) the read time of the tags seems instantaneous.

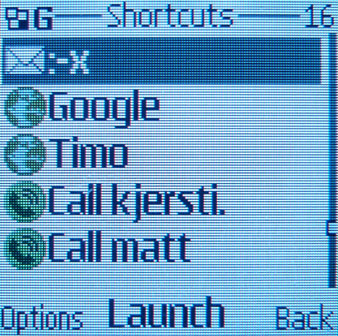

The shortcuts menu gives access to shortcuts. Confusingly, this is different from ‘bookmarks’ and the ‘names’ list on the phone, although names can be searched from within the application. I think tighter integration with the OS is called for.

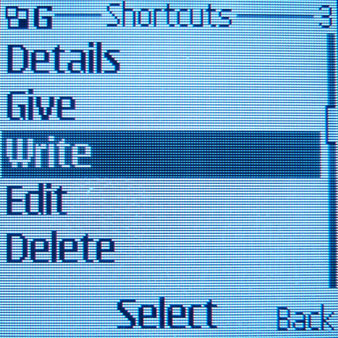

Shortcuts can be added, edited, deleted, etc. in the same way as contacts. They can be ‘Given’ to another phone or ‘Written’ to a tag.

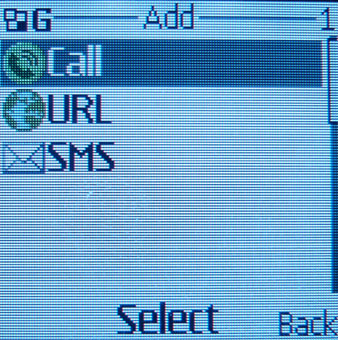

There are three kinds of shortcuts: Call, URL or SMS. ‘Call’ will create a call to a pre-defined number, ‘URL’ will load a pre-defined URL, and ‘SMS’ will send a pre-defined SMS to a particular number. This part of the application has the most room for innovative extensions: we should be able to set the state of the phone, change profiles, change themes, download graphics, etc. This can be achieved by loading URLs, but URLs and mobiles don’t mix, so why should we be presented with them, when there could be a more usable layer inbetween? There could also be preferences for prompts: at the moment each action has to be confirmed with a yes or a no, but in some secure environments it would be nice to be able to have a function launched without the extra button push.

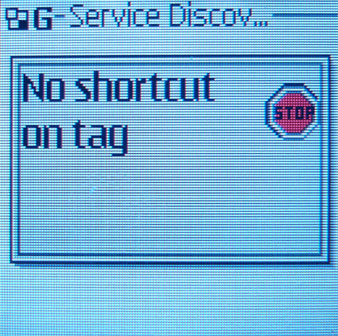

If a tag contains no data, then we are notified and placed back on the main screen (as happened when I tried to write to my Oyster card).

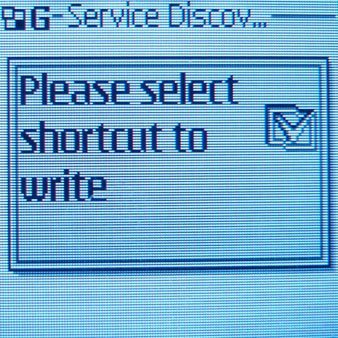

If the tag is writeable we are asked which shortcut to write to the tag.

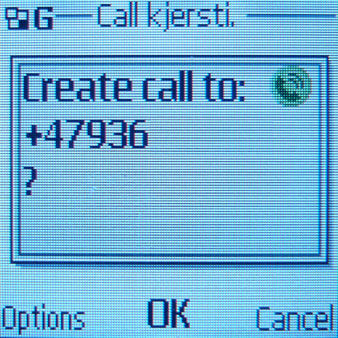

When we touch a tag with a shortcut on it, a prompt appears asking for confirmation. This is a level of UI to prevent mistakes, and a certain level of security, but it also reduces the overall usability of the system. With URL launching, there are two stages of confirmation, which is infuriating. There needs to be some other mode of confirmation, and the ‘service discovery’ app needs to somehow be deeper in the system to avoid these double button presses.

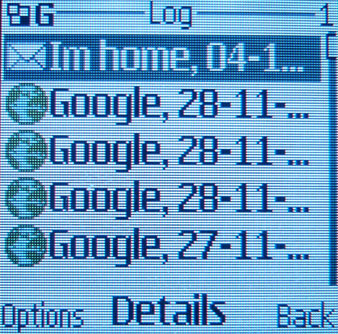

Lastly, there is a log of actions. Useful to see if the application has been reading something in your bag or wallet, without you knowing…
